OPTO-EDU A63.7225 Thermal Emission Transmission Electron Microscope 200KV 800000x

OPTO-EDU A63.7225 Thermal Emission Transmission Electron Microscope 200KV 800000x

Продукция - Микроскоп сканирования
  • Accelerating Voltage
    200 kV, Factory Aligned at 80 kV and 200kV
  • Electron Source
    Polycrystalline Tungsten or LaB6 Emitter
  • TEM Point Resolution
    0.23 nm
  • TEM Information Limit
    0.2 nm
  • Magnification
    20x to 800000x.
  • Goniometer
    Eccentric Goniometer 5-axis Motorized,
  • Place of Origin
    China
  • Фирменное наименование
    CNOEC, OPTO-EDU
  • Сертификация
    CE, Rohs
  • Model Number
    A63.7225
  • Документ
    Брошюра продукта PDF
  • Minimum Order Quantity
    1 pc
  • Цена
    FOB $1~1000, Depend on Order Quantity
  • Packaging Details
    Carton Packing, For Export Transportation
  • Delivery Time
    5~20 Days
  • Payment Terms
    T/T, West Union, Paypal
  • Supply Ability
    5000 pcs/ Month

OPTO-EDU A63.7225 Thermal Emission Transmission Electron Microscope 200KV 800000x

  • OPTO-EDU A63.7225 Thermal Emission Transmission Electron Microscope 200KV 800000x
  • OPTO-EDU A63.7225 Thermal Emission Transmission Electron Microscope 200KV 800000x
  • OPTO-EDU A63.7225 Thermal Emission Transmission Electron Microscope 200KV 800000x
Получить цену Контакт
  • Magnification 1x~800000x, TEM Point Resolution 0.23nm, TEM Information Limit 0.2nm
  • Accelarting Voltage 80~200kV, Eccentric Goniometer 5-axis Motorized, Compu Stage Double-tilt Holder
  • Oil Free Vacuum Pump, Gun Vaccum<1x10-6Pa, Column Vaccum<3x10-5Pa
  • Bottlm Mounted CMOS 20M, 5120x3840, Including Computer, Software, 1 Year Warranty
  • Electron Source is Polycrystalline Tungsten or LaB6 Emitter, Optional EDS
OPTO-EDU A63.7225 Thermal Emission Transmission Electron Microscope 200KV 800000x 0

OPTO-EDU A63.7225 Thermal Emission Transmission Electron Microscope 200KV 800000x 1

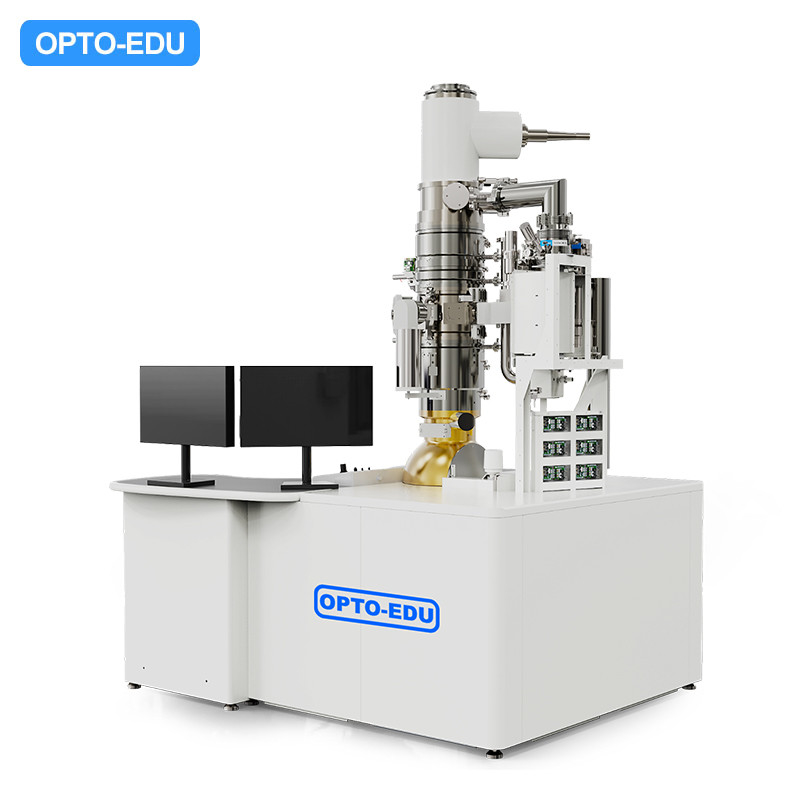

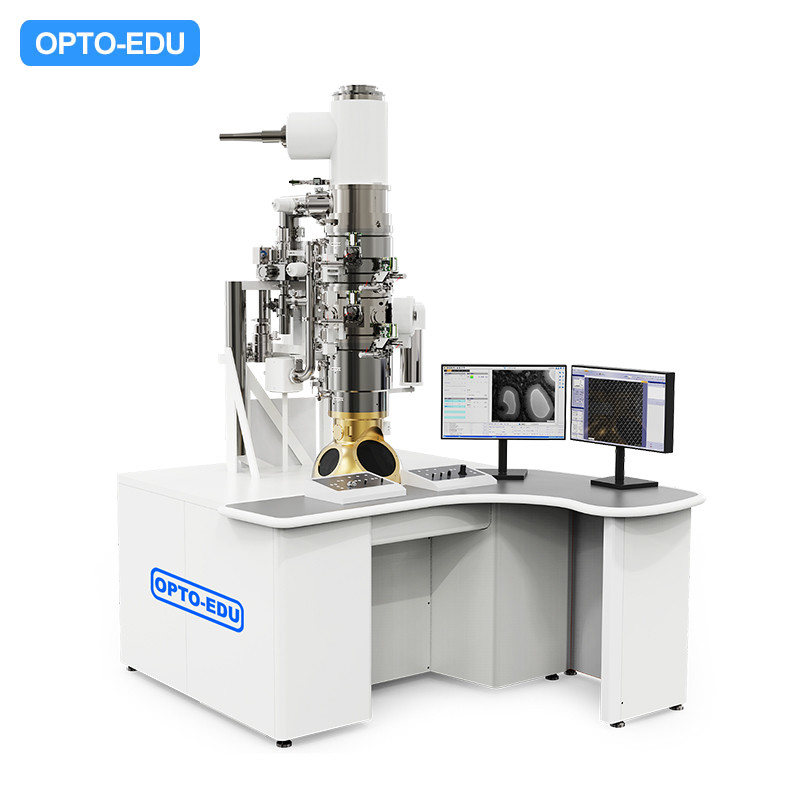

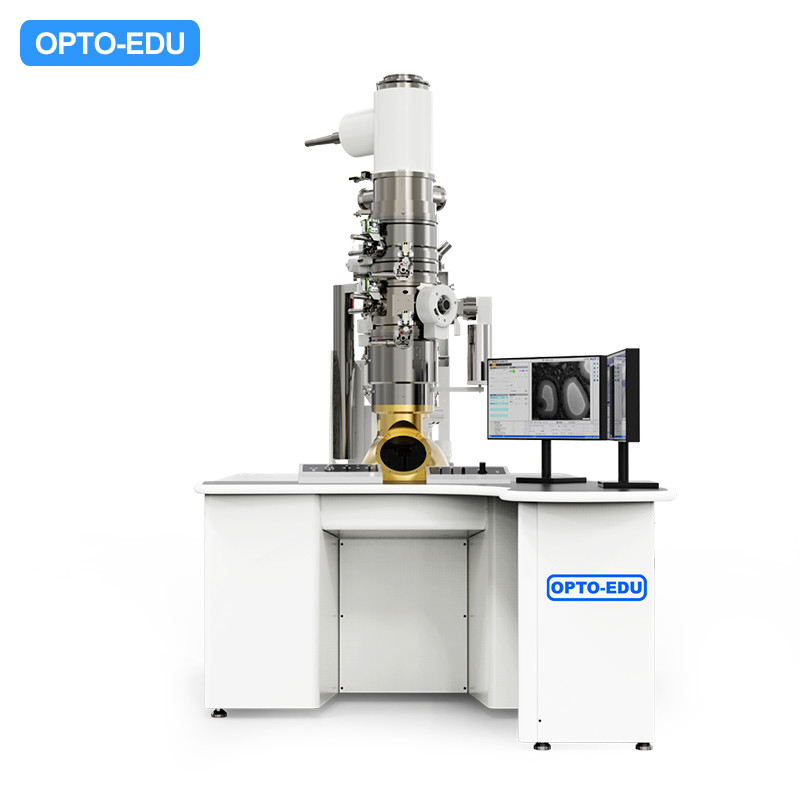

A63.7225  is a Thermal Emission Transmission Electron Microscope (TEM), 200KV, 800000x, independently developed & designed specifically for fields such as biology and medicine. This electron microscope design is easy to operate, and its large pole shoe design provides solutions such as 3D characterization, in-situ observation, and microcrystalline electron diffraction.


OPTO-EDU A63.7225 Thermal Emission Transmission Electron Microscope 200KV 800000x 2
Simple Operation Optimized panel and UI design, even beginners in transmission electron microscopy can directly operate the device; Provide instructional videos for operation.
Auto Function Automatic insertion and removal of sample rods, automatic aperture control, etc.
High Sensitive Camera The electron microscope is equipped with a highly sensitive CMOS camera, which can easily obtain high-quality images.
OPTO-EDU A63.7225 Thermal Emission Transmission Electron Microscope 200KV 800000x 3
Thermal Emission Transmission Electron Microscope, 200KV, 800000x
Accelerating Voltage  200 kV, Factory Aligned at 80 kV and 200kV
Electron Source  Polycrystalline Tungsten or LaB6 Emitter
TEM Point Resolution 0.23 nm
TEM Information Limit 0.2 nm
Magnification 20x to 800000x.
FEG Gun Vacuum < 1x10-6Pa,
TEM Column Vacuum  <5x10-5Pa
Goniometer Eccentric Goniometer 5-axis Motorized,
Camera 20M Speed Enhanced Bottom Mounted CMOS Camera EMSIS XAROSA 5120x3840
Stage Compu Stage Double-tilt Holder
X ±1mm, Y ±1mm, Z ±0.35mm, α ±25°, β ±25°
Upgradable EDS Analysis
Warranty Warranty One (1) Year.
Optional Accessories
Installation On-Site Installation & Operational Training Service Pack Optional
EDS Bruker XFlash 7T30S
